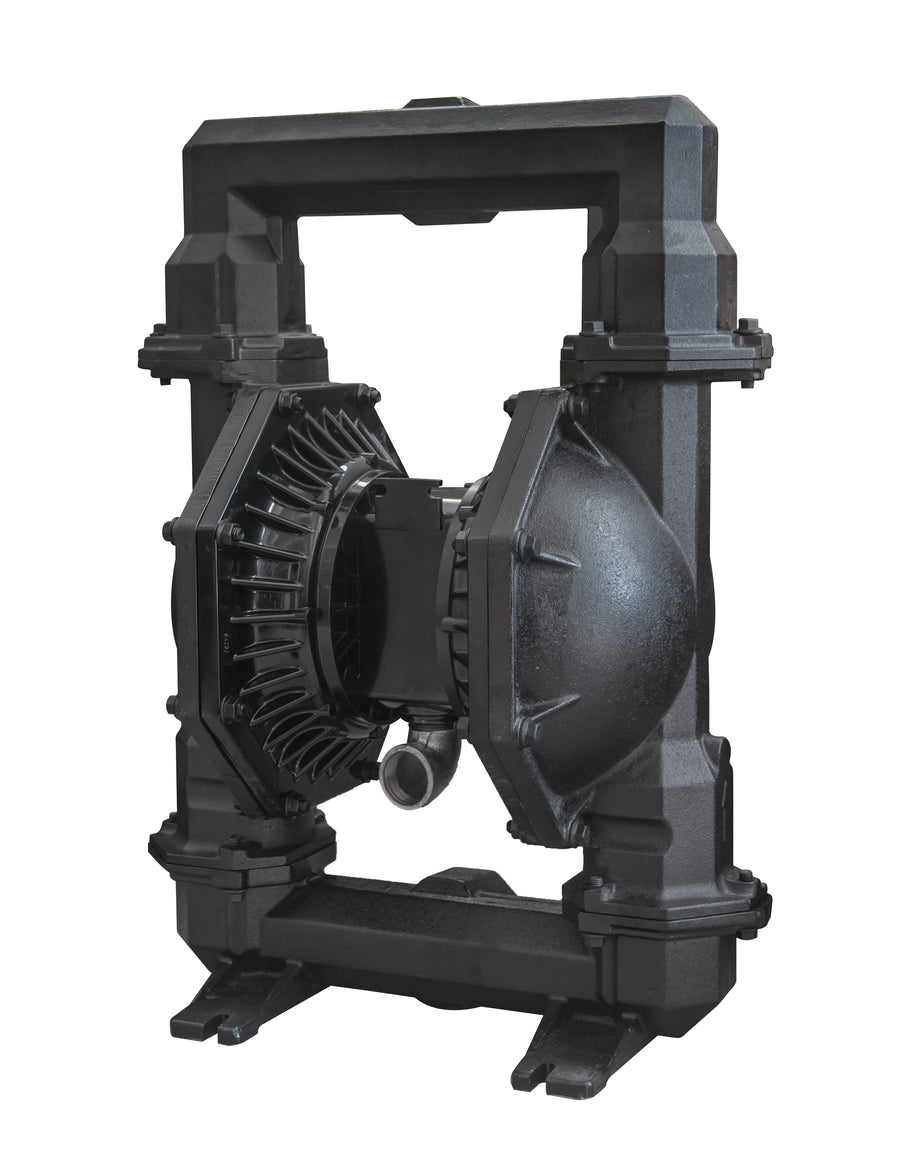

NP30A-AAP-FVV 3" Aluminum / Viton Metallic Diaphragm Pump
✔ In Stock
Drop-In Replacement for ARO® PD30A-AAP-FVV
DOWNLOADS
Customized Shipping Available (Call 905-664-5666)
The picture may not be an exact representation of the product
OEM MODEL NUMBERS AND/OR PART NUMBERS ARE FOR REFERENCE ONLY, AND IN NO WAY INDICATE THAT WE ARE SUPPLYING OEM PARTS, OR REPRESENTING THE OEM IN ANY WAY
DisclaimerTECHNICAL SPECIFICATIONS
| Pump Series | NP30 |
|---|---|
| Pump Type | Metallic |
| Size | 3" |
| Connection Type | 3" - 8 NPTF |
| Wetted Material (Fluid Caps/ Manifold) | Aluminum |
| Diaphragm | Viton® |
| Valve/ Ball | Viton® |
| Seat | Aluminum |
| Capacity (gpm) | 237 gpm (897 lpm) |
| Max. Discharge Head | 277 ft (120 psi) |
| Max. Particle Size | 3/8" dia. (9.5 mm) |
| Max. Air Inlet Pressure | 120 psig (8.3 bar) |
| Air Inlet Connection | 3/4" - 14 NPTF - 1 |
COMPATIBLE / REPLACES
| Replacement For | PD30A-AAP-FVV |
|---|---|
| Compatible Brand | ARO® |
REPAIR KITS
| Air Service Kit | I637369 |
|---|---|
| Fluid Service Kit no Seats | I637303-VV |
