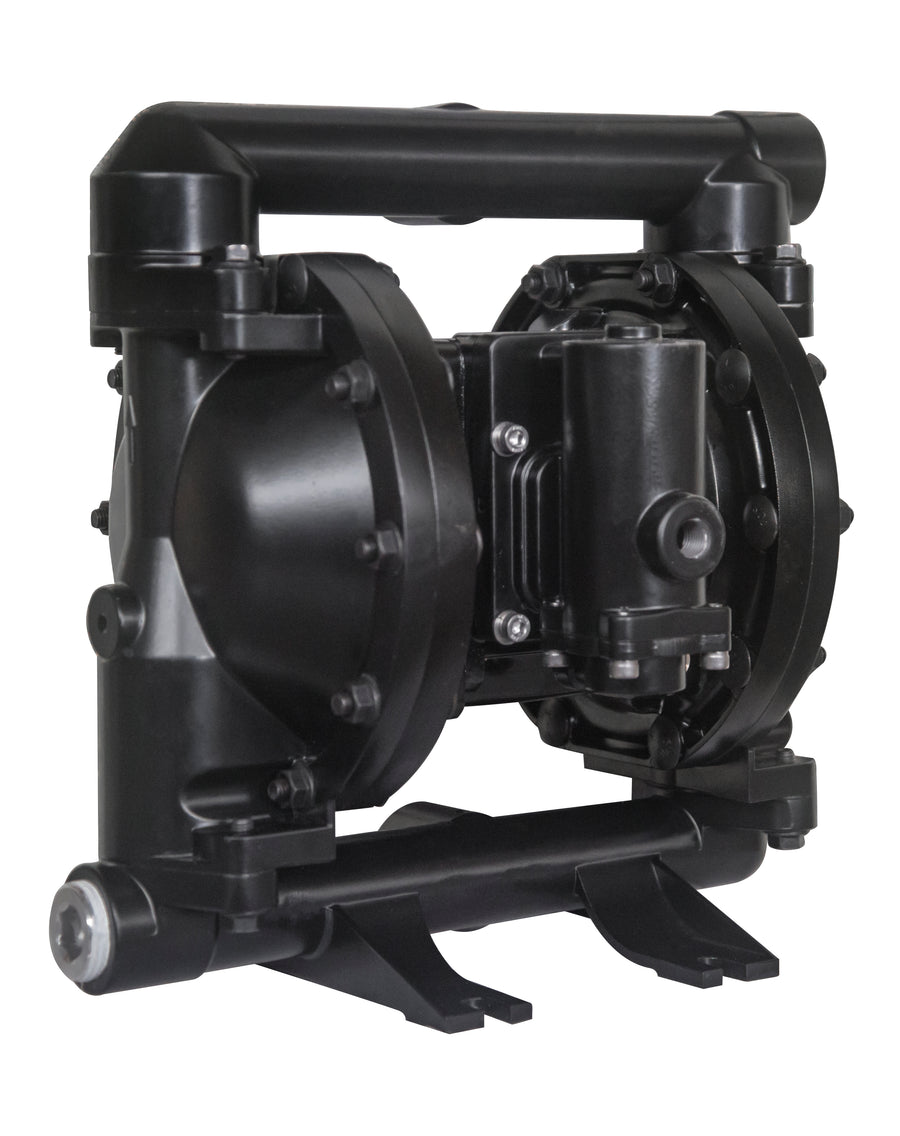

NP10A-ACP-AAA 1" Cast Iron / Santoprene Metallic Diaphragm Pump
✔ In Stock
Drop-In Replacement for ARO® PD10A-ACP-AAA
DOWNLOADS
Customized Shipping Available (Call 905-664-5666)
The picture may not be an exact representation of the product
OEM MODEL NUMBERS AND/OR PART NUMBERS ARE FOR REFERENCE ONLY, AND IN NO WAY INDICATE THAT WE ARE SUPPLYING OEM PARTS, OR REPRESENTING THE OEM IN ANY WAY
DisclaimerTECHNICAL SPECIFICATIONS
| Pump Series | NP10 |
|---|---|
| Pump Type | Metallic |
| Size | 1" |
| Connection Type | 1 - 11 - 1/2 NPTF |
| Wetted Material (Fluid Caps/ Manifold) | Cast Iron |
| Diaphragm | Santoprene™ |
| Valve/ Ball | Santoprene™ |
| Seat | Santoprene™ |
| Capacity (gpm) | 52.2 gpm (197.6 lpm) |
| Max. Discharge Head | 277 ft (120 psi) |
| Max. Particle Size | 1/8" dia. (3.3 mm) |
| Max. Air Inlet Pressure | 120 psig (8.3 bar) |
| Air Inlet Connection | 1/4 - 18 NPT |
COMPATIBLE / REPLACES
| Replacement For | PD10A-ACP-AAA |
|---|---|
| Compatible Brand | ARO® |
REPAIR KITS
| Air Service Kit | I637397 |
|---|---|
| Fluid Service Kit w/Seats | I637401-AAA |
| Fluid Service Kit no Seats | I637401-AA |
