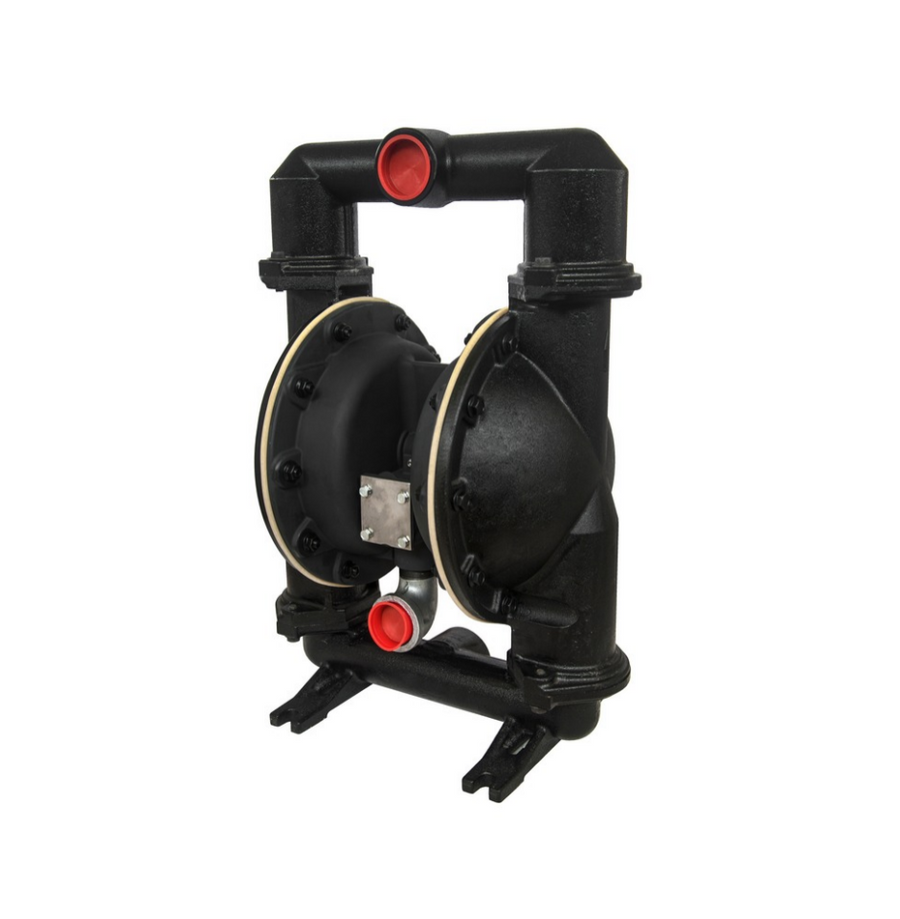

N666252-G22-C 2" Cast Iron / Buna Metallic Diaphragm Pump
✔ In Stock
Drop-In Replacement for ARO® 666252-G22-C
DOWNLOADS
Customized Shipping Available (Call 905-664-5666)
The picture may not be an exact representation of the product
OEM MODEL NUMBERS AND/OR PART NUMBERS ARE FOR REFERENCE ONLY, AND IN NO WAY INDICATE THAT WE ARE SUPPLYING OEM PARTS, OR REPRESENTING THE OEM IN ANY WAY
DisclaimerTECHNICAL SPECIFICATIONS
| Pump Series | N6662 |
|---|---|
| Pump Type | Metallic |
| Size | 2" |
| Connection Type | 2" - 11 - 1/2 NPTF |
| Wetted Material (Fluid Caps/ Manifold) | Cast Iron |
| Diaphragm | Buna |
| Valve/ Ball | Buna |
| Seat | Buna |
| Capacity (gpm) | 172 gpm (651 lpm) |
| Max. Discharge Head | 277 ft (120 psi) |
| Max. Particle Size | 1/4" dia. (6.4 mm) |
| Max. Air Inlet Pressure | 120 psig (8.3 bar) |
| Air Inlet Connection | 3/4" - 14 NPTF - 2 |
COMPATIBLE / REPLACES
| Replacement For | 666252-G22-C |
|---|---|
| Compatible Brand | ARO® |
REPAIR KITS
| Air Service Kit | I637434 |
|---|---|
| Fluid Service Kit w/Seats | I637432-G22 |
| Fluid Service Kit no Seats | I637432-22 |
