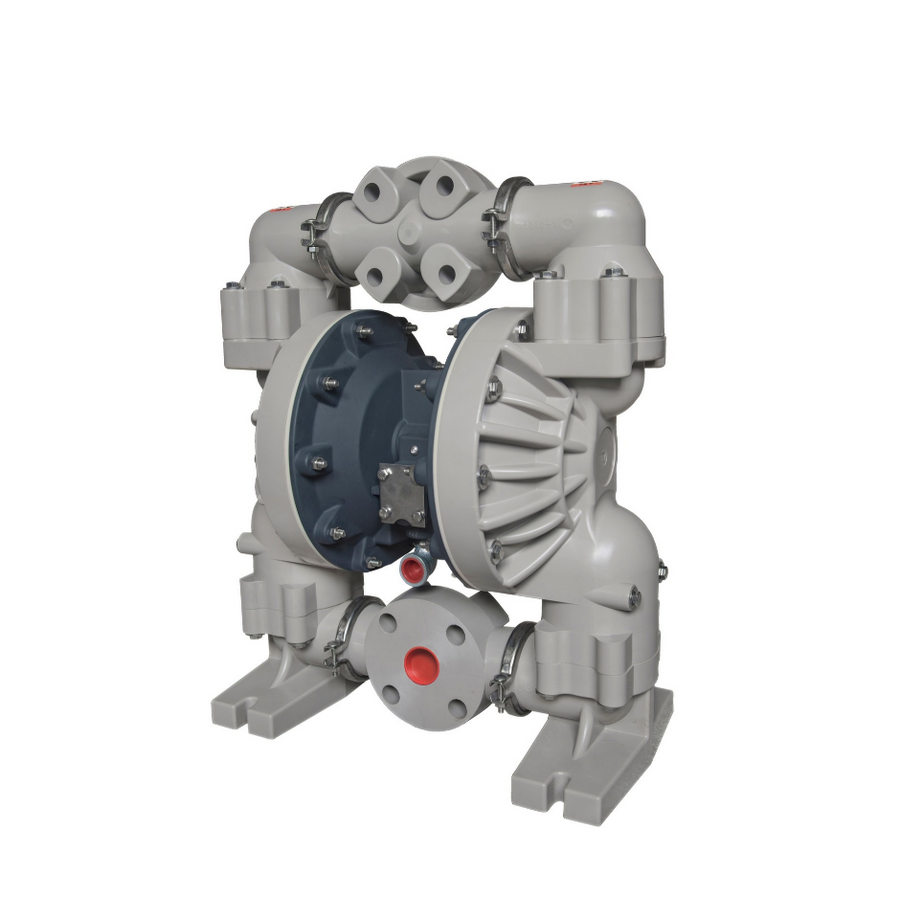

N6661T3-344-C 1.5" Polypropylene / PTFE Non Metallic Diaphragm Pump
✔ In Stock
Drop-In Replacement for ARO® 6661T3-344-C
DOWNLOADS
Customized Shipping Available (Call 905-664-5666)
The picture may not be an exact representation of the product
OEM MODEL NUMBERS AND/OR PART NUMBERS ARE FOR REFERENCE ONLY, AND IN NO WAY INDICATE THAT WE ARE SUPPLYING OEM PARTS, OR REPRESENTING THE OEM IN ANY WAY
DisclaimerTECHNICAL SPECIFICATIONS
| Pump Series | N6661T |
|---|---|
| Pump Type | Non Metallic |
| Size | 1.5" |
| Connection Type | 1 1/2" ANSI / DIN Flange |
| Wetted Material (Fluid Caps/ Manifold) | Polypropylene |
| Diaphragm | PTFE/Santoprene™ |
| Valve/ Ball | PTFE |
| Seat | Polypropylene |
| Capacity (gpm) | 100 gpm (378.5 lpm) |
| Max. Discharge Head | 277 ft (120 psi) |
| Max. Particle Size | 1/4" dia. (6.4 mm) |
| Max. Air Inlet Pressure | 120 psig (8.3 bar) |
| Air Inlet Connection | 1/2" - 14 NPTF |
COMPATIBLE / REPLACES
| Replacement For | 6661T3-344-C |
|---|---|
| Compatible Brand | ARO® |
REPAIR KITS
| Air Service Kit | I637118-C |
|---|---|
| Fluid Service Kit w/Seats | I637165-344 |
| Fluid Service Kit no Seats | I637165-44 |
