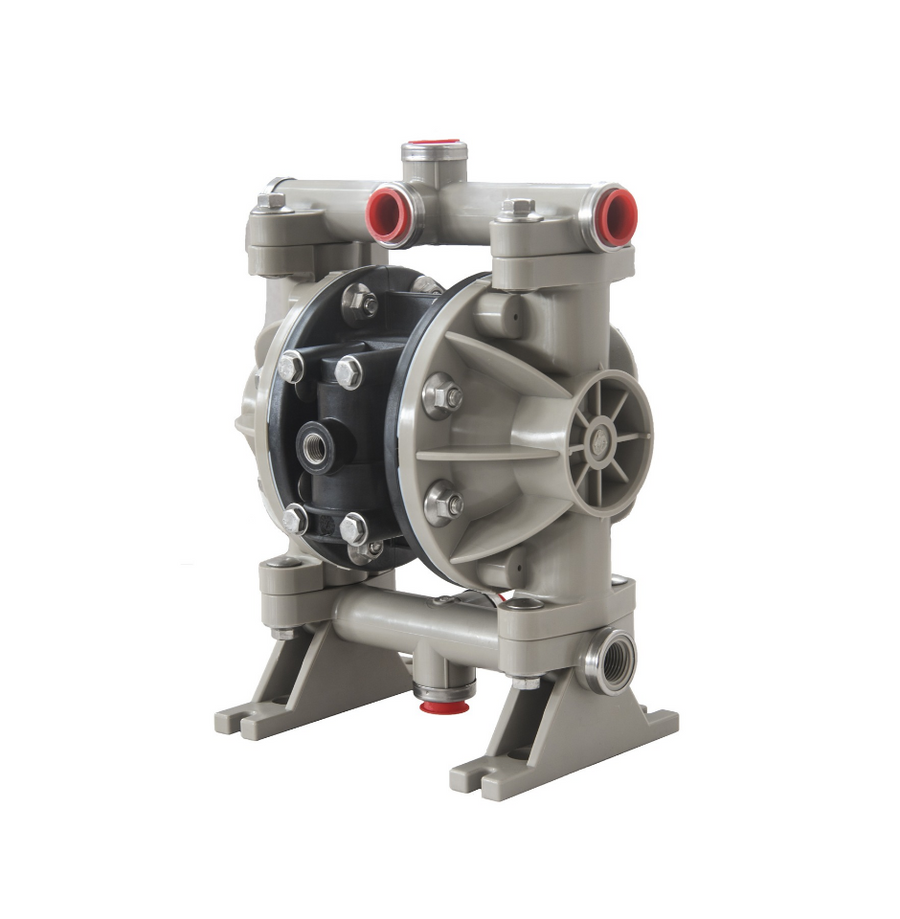

N66605J-388 0.5" Polypropylene / Polyurethane Non Metallic Diaphragm Pump
✔ In Stock
Drop-In Replacement for ARO® 66605J-388
DOWNLOADS
Customized Shipping Available (Call 905-664-5666)
The picture may not be an exact representation of the product
OEM MODEL NUMBERS AND/OR PART NUMBERS ARE FOR REFERENCE ONLY, AND IN NO WAY INDICATE THAT WE ARE SUPPLYING OEM PARTS, OR REPRESENTING THE OEM IN ANY WAY
DisclaimerTECHNICAL SPECIFICATIONS
| Pump Series | N66605 |
|---|---|
| Pump Type | Non Metallic |
| Size | 0.5" |
| Connection Type | 1/2" - 14 NPTF |
| Wetted Material (Fluid Caps/ Manifold) | Polypropylene |
| Diaphragm | Polyurethane |
| Valve/ Ball | Polyurethane |
| Seat | Polypropylene |
| Capacity (gpm) | 13 gpm (49.2 lpm) |
| Max. Discharge Head | 231 ft (100 psi) |
| Max. Particle Size | 3/32" dia. (2.4 mm) |
| Max. Air Inlet Pressure | 100 psig (6.9 bar) |
| Air Inlet Connection | 1/4" - 18 NPT |
COMPATIBLE / REPLACES
| Replacement For | 66605J-388 |
|---|---|
| Compatible Brand | ARO® |
REPAIR KITS
| Air Service Kit | I637141 |
|---|---|
| Fluid Service Kit no Seats | I637140-88 |
