What are types of Shallow Well Pumps ?

A shallow well pump is a type of pump designed to extract water from shallow wells or groundwater sources that are less than 25 feet deep. Shallow well pumps are commonly used for domestic water supply, irrigation, and other applications that require low to moderate flow rates and pressures.

Shallow wells are typically less than 25 feet deep and are usually found in areas with high water tables, such as near rivers, lakes, or other bodies of water. Shallow wells are an excellent source of water for domestic use and irrigation since they are relatively easy to drill and maintain. However, extracting water from a shallow well requires a pump that can create enough pressure to lift the water to the surface.

A shallow well pump is a self-priming pump that is designed to operate in shallow wells or other water sources that have a water depth of 25 feet or less. The pump typically sits above ground level and draws water through a suction pipe that is connected to the well or water source. The pump then delivers the water to a storage tank or directly to the point of use through a pressure tank and a series of pipes.

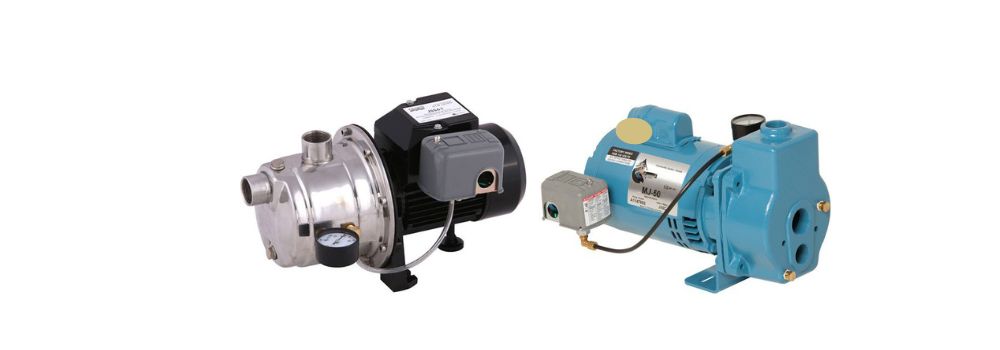

There are two main types of shallow well pumps: jet pumps and centrifugal pumps.

Jet Pumps :

Jet pumps are the most common type of shallow well pump. Jet pumps create a vacuum that draws water up through the suction pipe and into the pump. The pump then uses a combination of pressure and centrifugal force to deliver the water to the surface. Jet pumps are available in two types: single-stage and multi-stage.

Single-stage jet pumps are simple in design and use a single impeller to create pressure and flow. Single-stage jet pumps are suitable for shallow wells or other water sources that have a depth of 25 feet or less. Multi-stage jet pumps, on the other hand, use multiple impellers to create higher pressures and flows. Multi-stage jet pumps are suitable for deeper wells or other water sources that have a depth of up to 80 feet.

Centrifugal Pumps :

Centrifugal pumps are another type of shallow well pump. Centrifugal pumps use a rotating impeller to create pressure and flow. The impeller is driven by an electric motor, and the water is delivered to the surface through a series of pipes. Centrifugal pumps are generally less efficient than jet pumps, but they are simple in design and require less maintenance.

Shallow well pumps come in different sizes and capacities to suit various applications. The size and capacity of a pump depend on the depth of the well or water source, the amount of water required, and the pressure needed. Typically, a shallow well pump will have a flow rate of up to 20 gallons per minute and a pressure range of 30 to 50 pounds per square inch (psi).

In addition to jet pumps and centrifugal pumps, shallow well pumps are also available in different configurations, such as single-phase and three-phase motors. Single-phase motors are suitable for small to medium-sized shallow wells, while three-phase motors are suitable for larger wells or other applications that require higher flow rates and pressures.

Shallow well pumps require minimal maintenance, but regular inspections and servicing are recommended to ensure the pump is working correctly. Routine maintenance includes checking the pump's suction pipe and foot valve for blockages, inspecting the impeller for damage or wear, and checking the pressure tank and switch for proper operation.

In summary, a shallow well pump is a type of pump designed to extract water from shallow wells or groundwater sources that are less than 25 feet deep. Shallow well pumps are available in two main types: jet pumps and centrifugal pumps. Shallow well pumps come in different sizes and capacities to suit various applications, and regular maintenance is required to ensure the pump is working correctly. Shallow well pumps are an excellent source of water
